Milodon Small Block Chevy Street and Strip Oil Pans

STREET & STRIP, DRAG RACE and

PRO TOURING / ROAD RACE LS OIL PANS


  • Designed for Heavy Street Use and Drag Strip Applications.
  • Clears Stock Chassis and Steering, As Listed, and Most Headers.
  • These Highly Engineered Oil Pans Actually Free Up Additional Horsepower.
  • Pro Touring Pans Provide Ample Oil Supply When Ground Clearance is Critical.
  • Low Profiles Allow Adequate Oil Supply & Maximum Available Ground Clearance.
  • Necessary For High Power Output and Increased Engine Sizes.
Made InTHe USA

- LS Chevy -


PRO TOURING and ROAD RACE

Milodon LS Chevy Pro Touring Pan

#31507

Milodon LS Pro Touring Oil Pan

#31507 pan with the #21580 filter adapter

As power and cubic inches increase, the engine requires an oil pan improvement too. And when there is no available ground clearence, a Milodon Pro Touring oil pan is the only answer. Pro Touring oil pans have better than stock LS ground clearence, additional oil pan capacity and greatly superior oil control. For the LS Chevy engines, the Pro Touring style is really the same as a full on road racing oil pan with competition trap door baffle system proven to provide good oil supply on left and right turns. Works very well for Autocross, Drifting, Drag Race and heavy duty Street use. Fits Camaros, Chevelles, Corvettes and most popular chassis. Billet oil filter adapters are used to allow an oil filter to be mounted on the block or remotely. A Milodon exclusive is the #21580 filter adapted that places the filter bottom safely above the bottom of the oil pan for protection. Plus this adapter allows use of the long LS oil filter OR a regular Small Block Chevy oil filter that increases filtering area 100% over the standard long LS filter. High strength magnetic oil pan drain plug included.

* Pan fits a 4.125" stroke crank.

* Pan Capacity is 7 Quarts Plus Filter - 5 1/2" Sump Depth


  - LS Series Chevy, All   31507

Oil Pump and Pick-Up Required

Pickup 18292
Oil Pump Stock
Oil Pan Gasket Stock



Adapter to mount filter on the pan rail 21580
Adatper to mount the filter remote 21576
Oil Filter Kit 21575



Windage Tray 32150
Oil Pan Bolts 85002
Dipstick, CNC stainless steel 22006

LOW PROFILE

Milodon LS Chevy Oil Pan #30914

The Low Profile "triangulated" sump design that was originally developed by Milodon over three decades ago gives both adequate ground clearance, as well as sufficient oil capacity for any kind of high performance use.  This oil pan is equally suited for use on the street or strip.  It will fit all Chevy chassis, except '62-'67 Nova. Oil control baffles 100% subdue oil movement and provide increased horsepower. High strength magnetic oil pan drain plug included. Requires the use of a remote mounted oil filter #21575.

* Pan fits a 4.125" stroke crank.

* Pan Capacity is 7 Quarts Plus Filter - 6" Sump Depth


  - LS Series Chevy, All   30914

Oil Pump and Pick-Up Required

Pickup 18290
Oil Pump Stock
Oil Pan Gasket Stock



Oil Filter Kit 21575



Windage Tray 32150
Oil Pan Bolts 85002
Dipstick, CNC stainless steel 22006

LOW PROFILE - HEAVY DUTY USE

Milodon LS Oil Pan #30915

Allows installation of LS and Gen III engines into early pre-1975 Camaro, Chevelle, 68 & up Novas and 55-57 Chevys. While this oil pan uses heavy duty steel and double thick oil pan rails, it is actually 5 1/2 pounds lighter than the factory aluminum oil pan. The increased oil pan capacity and increased oil control of the Milodon oil pan allows for consistent oil pressure under heavy usage and more available power.

Milodon LS oil pans use either a filter plate that mounts filter in the stock on-the-block position or a plate that allows a remote filter. Remote filter plate uses the additionally required #21575 filter kit that includes all other required brass fittings and 10 AN, 250 PSI line. High strength magnetic oil pan drain plug included.

* Pan fits a 4.125" stroke crank.

* Pan Capacity is 7 Quarts Plus Filter - 6" Sump Depth


  - All Chassis (exept 55-57 Chevy & 62-67 Nova ) 30915
  - 1955-57 Chevy 30916

Oil Pump and Pick-Up Required:

Pickup 18290
Oil Pump Stock
Oil Pan Gasket Stock



Adapter to mount filter on the pan rail 21580
Adatper to mount the filter remote 21576
Remote Oil FilterHousing Kit 21575



Windage Tray - Mounts on stock bolt extensions 32150
Oil Pan Bolts 85002
Dipstick, CNC stainless steel 22006

DRAG RACE - Max Power

Milodon LS Chevy Drag Race Pan #30913
Fits early chassis 1967-86 Camaro, 1966 & Up Chevelle, 1968 & Up Nova and All Corvettes. Oil Pan features a dropped front section allowing the windage tray to work more effectively. Trap door assembly keeps oil under control during hard burnouts and shut down. Uses oil filter line attaching tubes welded to the oil rail to safely clear big tube headers. Full length Milodon windage tray increases power and simply mounts to factory bolt extensions. High strength magnetic oil pan drain plug included.

* Pan fits a 4.125" stroke crank.

* Pan Capacity is 7 Quarts Plus Filter - 6" Sump Depth


  - LS Series Chevy, All 30913

Oil Pump and Pick-Up Required:

Pickup 18290
Oil Pump Stock
Oil Pan Gasket Stock



Remote Oil FilterHousing Kit 21575



Windage Tray - Mounts on stock bolt extensions 32150
Oil Pan Bolts 85002
Dipstick, CNC stainless steel 22006





- 1962-1967 CHEVY II NOVA DEEP SUMP -

Milodon LS Chevy Early Nova Pan #31063
Allows installation of an LS Chevy engine into the early Nova. This rear sump oil pan is a requirement for any racing or high performance use, replacing the poorly designed stock front sump configuration. Will not work with stock power steering. Milodon full length tray mounts to stock bolt extensions and will increase oil control over stock tray. High strength magnetic oil pan drain plug included.

* Pan fits a 4.125" stroke crank.

* Pan Capacity is 7 Quarts Plus Filter - 7 1/2" Sump Depth


  - LS Chevy - All LS series engines 31063

Oil Pump and Pick-Up Required:

Pickup 18291
Oil Pump Stock
Oil Pan Gasket Stock



Remote Oil FilterHousing Kit 21575



Windage Tray - Mounts on stock bolt extensions 32150
Oil Pan Bolts 85002
Dipstick, CNC stainless steel 22006

  - S-10 BLAZER & PICKUP ENGINE SWAP -

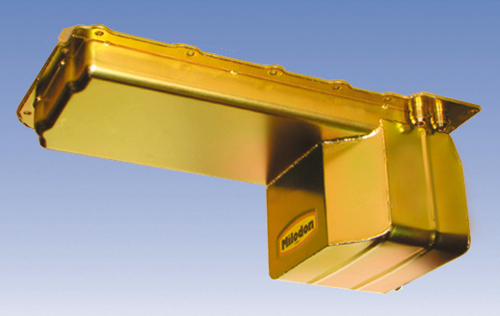

Milodon LS Chevy S-10 OIl Pan #31083
Designed to allow the installation of an LS Chevy into an S-10 pickup or Blazer. The rear sump has increased oil capacity and increased oil control yielding more power and more consistent oil pressure. Milodon full length tray mounts to stock bolt extensions and will increase oil control over stock tray. High strength magnetic oil pan drain plug included.

* Pan fits a 4.125" stroke crank.

* Pan Capacity is 7 Quarts Plus Filter - 7 1/2" Sump Depth


  - LS Chevy - All LS series engines 31083

Oil Pump and Pick-Up Required:

Pickup 18291
Oil Pump Stock
Oil Pan Gasket Stock



Remote Oil FilterHousing Kit 21575



Windage Tray - Mounts on stock bolt extensions 32150
Oil Pan Bolts 85002
Dipstick, CNC stainless steel 22006

Pick-Up to Pan Bottom Clearance MUST Be Checked and Adjusted to 1/4" to 3/8".
